Terminal Connector
LTK Type Terminal Connector
● Material: Insert: AL
● Plastic: PA66
● Rated voltage: 1000V
● Operating Temperature:-30°C~+105°C

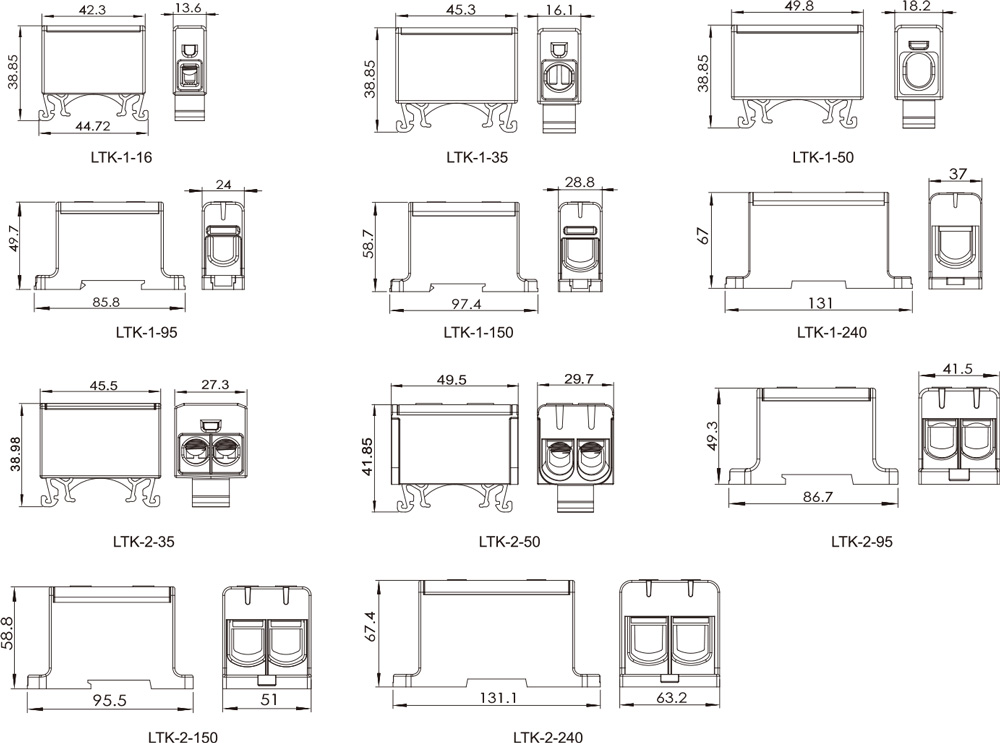

| Item No. | Wire range (mm²) | Rated current (A) | Torque Al/Cu (N.m) |
| LTK-1-16 | 1.5-16 | 63 | 1.8 |
| LTK-1-35 | 2.5-35 | 135 | 2.5 |
| LTK-1-50 | 2.5-50 | 160 | 6(2.5-6mm²)/12(10-50mm²) |
| LTK-1-95 | 16-95 | 245 | 12(16-50mm²)/22(70-95mm²) |
| LTK-1-150 | 25-150 | 320 | 12(10-50mm²)/22(70-95mm²)/35(120-150mm²) |
| LTK-1-240 | 25-240 | 425 | 25(35-120mm²)/55(120-240mm²) |
| LTK-2-35 | 2.5-35 | 135 | 2.5 |
| LTK-2-50 | 2.5-50 | 160 | 6(2.5-6mm²)/12(10-50mm²) |
| LTK-2-95 | 16-95 | 245 | 12(16-50mm²)/22(70-95mm²) |
| LTK-2-150 | 25-150 | 320 | 12(10-50mm²)/22(70-95mm²)/35(120-150mm²) |
| LTK-2-240 | 25-240 | 425 | 25(35-120mm²)/55(120-240mm²) |
