Terminal Connector
LT Din Rail Type Terminal Block
● Material: Insert: brass
● Plastic: PA6, UL94, V-2
● Rated voltage: 450V
● Din Rail Size:35x7.5mm
● Operating Temperature:-40°C~+105°C

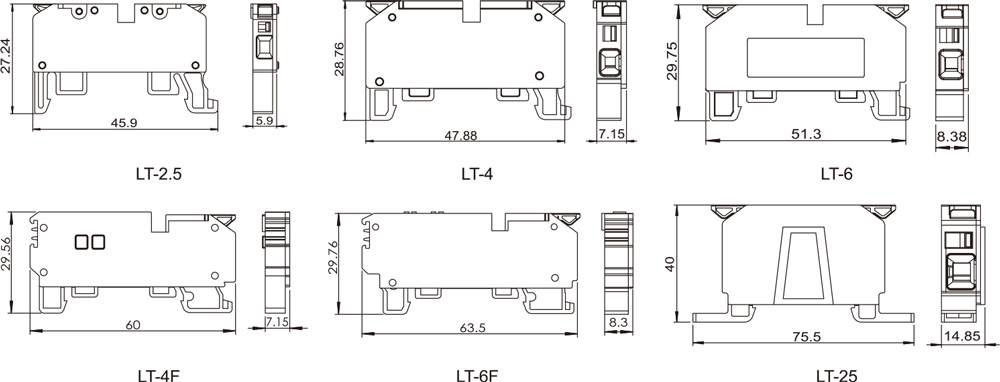

| Item No. | Wire range (mm²) | Rated impulse voltage (kV) | Rated current (A) | Poles | Strip Length (mm) | Color | |
| Body | Lever | ||||||
| LT-2.5 | 1-2.5 | 4 | 32 | 1P | 11-12 | Grey | Red |
| LT-4 | 1-4 | 4 | 32 | 1P | 11-12 | Blue | |
| LT-6 | 1-6 | 4 | 40 | 1P | 11-12 | Black | |
| LT-4F | 1-4 | 4 | 32 | 1P | 11-12 | Yellow | |
| LT-6F | 1-6 | 4 | 40 | 1P | 11-12 | Orange | |
| LT-25 | 10-25 | 4 | 75 | 1P | 14-16 | Green | |
