Terminal Connector

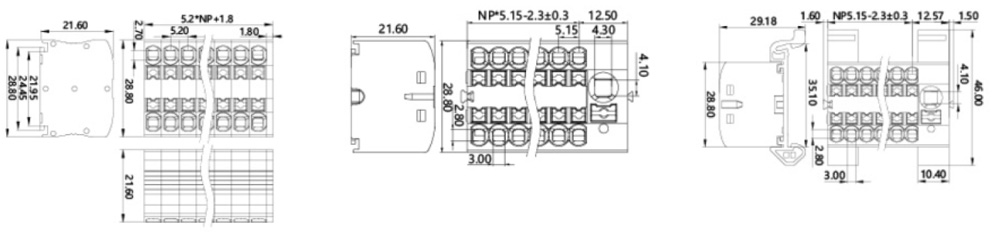

NTB-B Type But Rail Terminal Connector
● Rated voltage：690V
● Rated current:Main wire:41A
● Branch wire: 24A
● Rated Impulse voltage: 4kV
● Operating Temperature: -40°C~+105°C
● Body color available
| Item No. | Wire range | Connecting wire numbers | Pitch (mm) | Wire strip length (mm/in) | ||
| Flexible wire | Non-flexible wire | In | Out | |||
| NTB-B01 | 0.5~6.0mm² (20-10AWG) 0.5~10mm² (20-8AWG) | 0.2~4.0mm² (24-12AWG) | 1 | 1 | 5.15 | 8-10 (0.32"-0.39") |
| NTB-B02 | 2 | 2 | ||||
| NTB-B03 | 3 | 3 | ||||
| NTB-B04 | 4 | 4 | ||||
| ...... | ...... | ...... | ||||
| NTB-B12 | 12 | 12 | ||||
