Terminal Connector

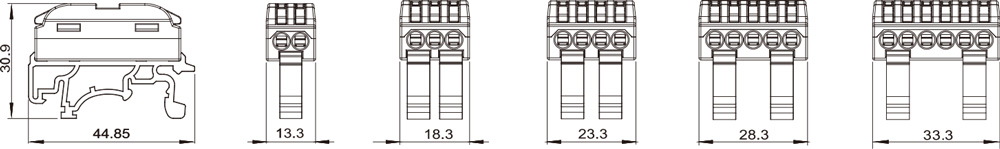

ACN32-B Type Terminal Connector
● Rated voltage:400V
● Rated current:32A
● Voltage resistance:4KV
● Operating Temperature:-30°C~+105°C
| Item No. | Wire range | Connecting wire numbers | Wire strip length (mm/in) | ||
| Flexible wire | Non-flexible wire | In | Out | ||
| ACN32-B02 | 0.2~4.0mm² (24-12AWG) | 0.08~2.5mm² (28-14AWG) | 2 | 2 | 10 / 0.39" |
| ACN32-B03 | 3 | 3 | |||
| ACN32-B04 | 4 | 4 | |||
| ACN32-B05 | 5 | 5 | |||
| …… | …… | …… | |||
| ACN32-B40 | 40 | 40 | |||
Note: Size can be up to 40 pairs, with removable Din Rail Fixing Support.
